Home > Solutions > Solutions for Network OEMs and MSPs > Universal Mediation > Universal Mediation Architecture

Universal Mediation Architecture

WebNMS's Universal Mediation solution offers a comprehensive solution for integrating network elements and element managers with OSS systems. It offers a universal and feature rich mediation architecture based on standards, including J2EE, XML and web services. The standards based architecture with open APIs offers developers a high degree of control and extensibility. New network elements, EMS/NMS systems and OSSs can be rapidly integrated with minimal development effort.

WebNMS's Universal Mediation solution supports a wide range of devices including SNMP, TL1, CLI, HTTP, Syslog, XML, etc. It provides access to OSS systems through CORBA, TL1, SNMP and JMS. TMF multi-technology, multi-vendor management is also available with the WebNMS TMF product suite.

WebNMS OSS Mediation Architecture

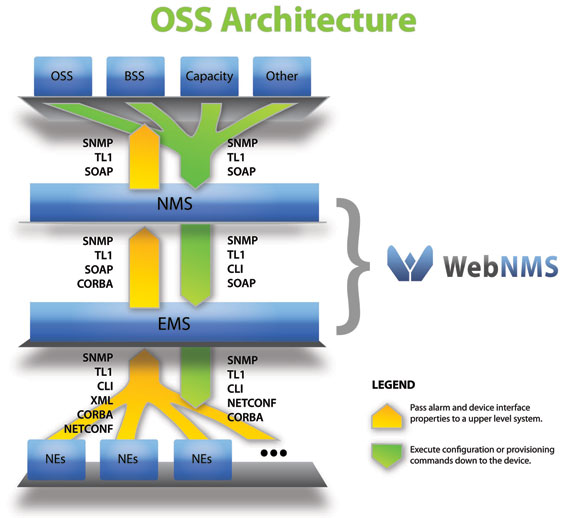

Below is illustration of how WebNMS Framework can be used to integrate OSS systems to EMS/NMS systems.


OSS Architecture

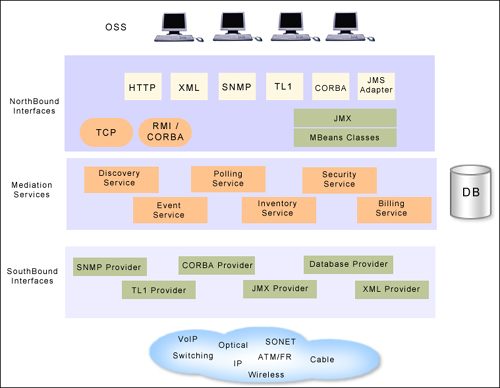

Mediation Architecture

The mediation architecture uses a common XML messaging model to easily integrate management protocols into the mediation solution. SNMP, TL1, CLI and other protocols, including proprietary protocols, are converted to and from XML messages. These XML messages can be processed more easily by the mediation services layer. The mediation services layer provides a set of services, including data collection, event management, and configuration services. These services are made available via the northbound OSS interfaces to NMS and OSS systems.

The mediation solution uses a multi-tier architecture with a relational database back-end. This provides a clustered, scalable and reliable solution that can meet a wide range of service provider needs. The distributed architecture, along with the open, standards-based, extensible design, ensures integration with diverse service provider environments and the ability to evolve with changing needs.

For information on WebNMS’s products for universal mediation solutions please send as an e-mail or contact an WebNMS sales representative near you.
